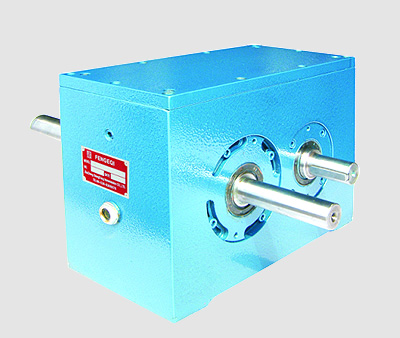

Nmes:PU Parallel Index

It consists of 2 plate cams fixed to the input shaft and a spider that supports the cam follower to the output shaft. This indexing drive has a plane cam mechanism designed so that the sam follower contacting the 2 plate cams on the input side serves to transmit rotation to the spider of the output shaft. Best suited for driving conveyors moving at comparatively long intervals.......
CLICK HERE TO VIEW THE PRODUCTS TECHNICAL DATA

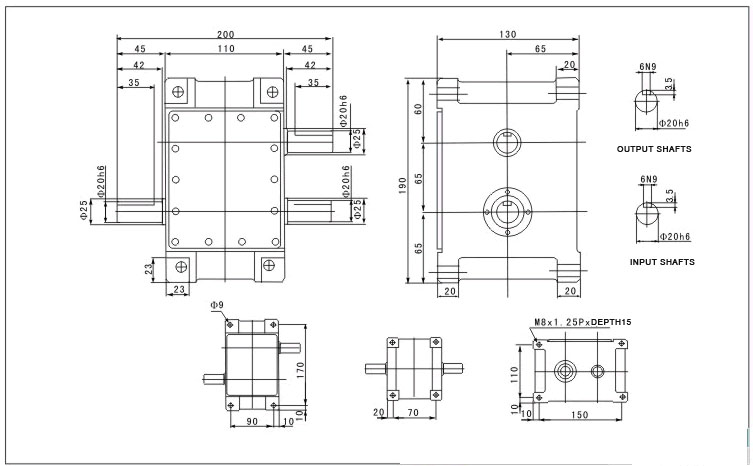

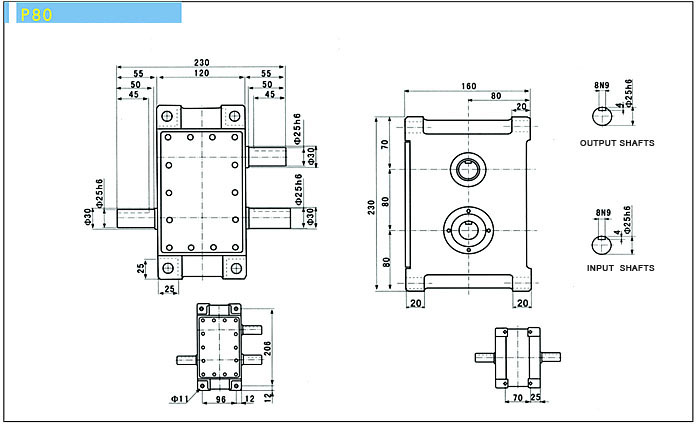

PU Parallel Index-P65 PU Parallel Index-P80

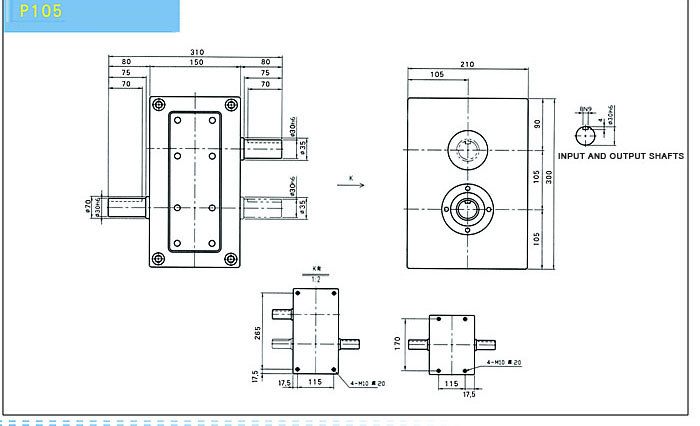

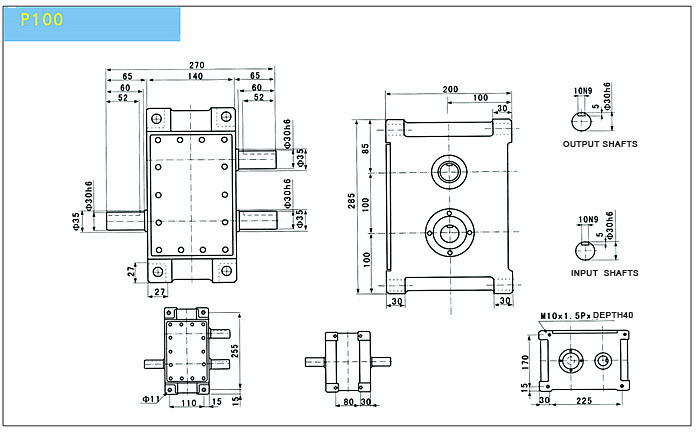

PU Parallel Index-P100 PU Parallel Index-P105

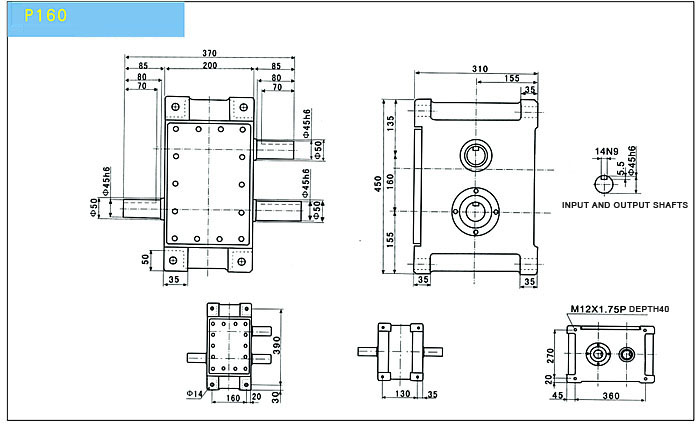

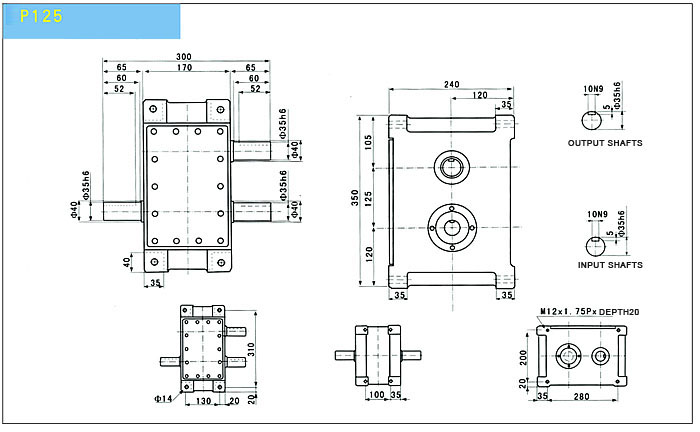

PU Parallel Index-P125 PU Parallel Index-P160

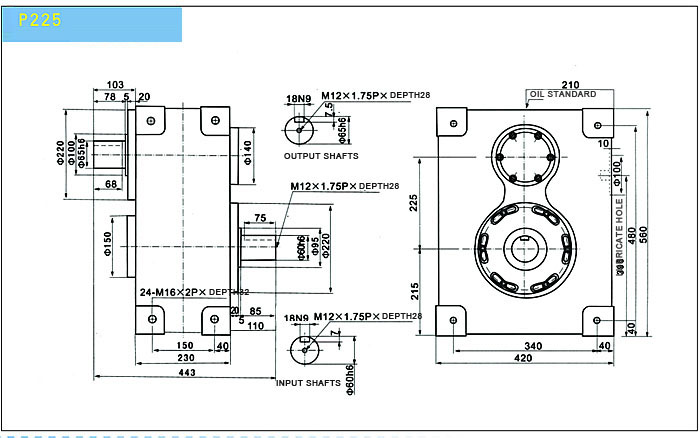

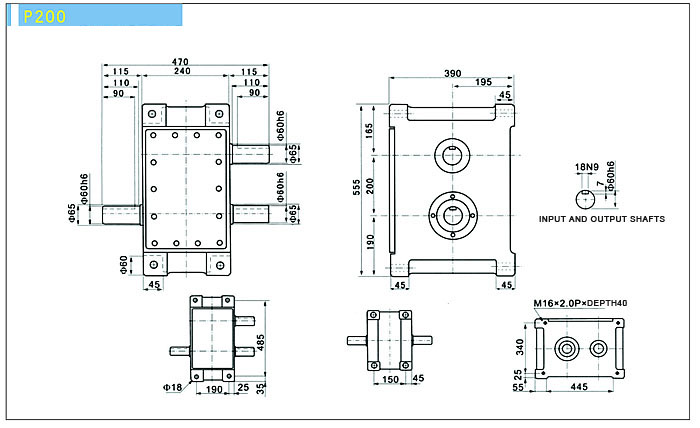

PU Parallel Index-P200 PU Parallel Index-P225
