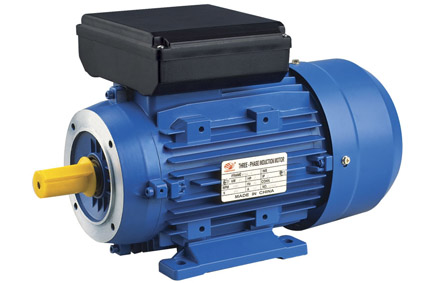

XNYC-ML series aluminum housing single-phase dual-capacitor asynchronous motors,with latest design in entirety, are made of selected quality materials and conform to the IEC standard . ML motors have good performance, safety and reliable operation, nice apperance and, can be maintained very conveniently, while with low noise, little vibration and at the same time of light weight and simple constrution. The compositive performance is good, the occasion where the multiple of starting torque is 18-2.5. These series motors are suitable for the occasion where the requirements ofbig starting torque and high over load, such as air-compressors, pumps, fans, medical apparatus and instruments, and many other 5mall machines.
OPERATING CONDITIONS:
Ambient temperature:-15ºC<θ<40ºC
Rated voltage:220V
Duty/Rating:Continuous(S1)
Protection class:IP54.IP55 Altitude:Not exceeding 1000meters
Rated frequeny:50Hz/60Hz
Insulation class:Class B/F
Cooling method:IC0141
 |
